Centrifugally Cast Bi Metal Liners High Chrome Iron Sleeve For Weatherford MP-16 Triplex

Xian LongWell Machinery Equipment Co., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Centrifugally Cast Bi Metal Liners High Chrome Iron Sleeve For Weatherford MP-16 Triplex

  • 1
  • 2

Brand Name : LONGWELL

Model Number : Oil Drilling Mud Pump

Certification : API-7K

Place of Origin : China

MOQ : 1 PCS

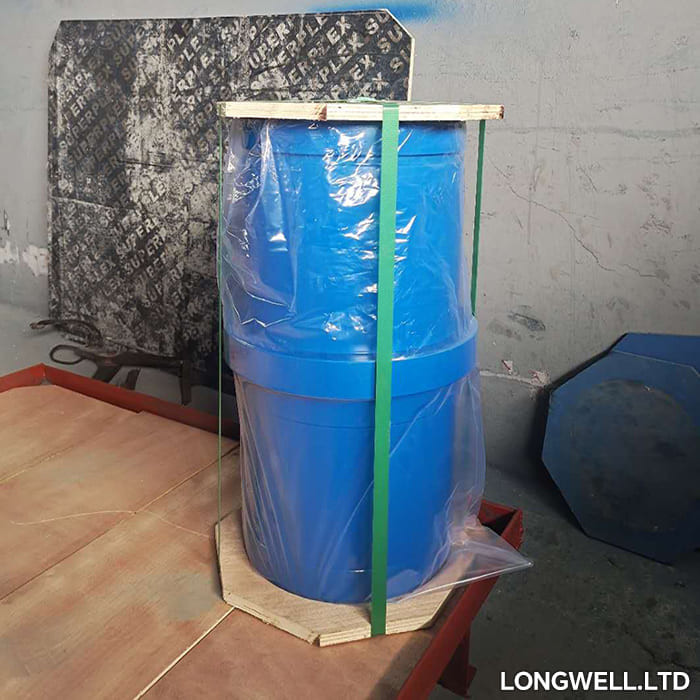

Packaging Details : Plywood case/Iron pallet

Payment Terms : T/T 30%DP, balabce before ship

Supply Ability : 1000 PCS per Month

Type : Bimetallic

Liner Hardness : 58-65 HRC

Serve Life : 800 hours

Cr Content : 26.347

Maintenance : Low maintenance cost

Temperature Rating : Up to 400°F

Pressure : 5000Psi

Standard Or Nonstandard : Standard

Application : Oil and gas drilling industry

Surface Treatment : Chrome-plated or nickel-plated

Pressure Rating : Up to 7500 psi

Material : High-quality forged steel

BOMCO : F800/1000/1300/1600/1600HL

HONGHUA : 3NB-800/1000/1300/1600F

HRSB : RS-F800/1000/1300/1600

INGZHOU : QF-1300/1600

LS-NOW : 3NB1300C/1600

NOV : 12-P-160 14-P-220

WeatherFord : MP-10/16

GD : PZ-7/8/9/10/11

EMSCO : FB-1300/1600

RUSSIAN : UNBT-950/1180L UNB-600 8T650

Contact Now

What is Weatherford MP-16 Triplex Mud Pump Liner?

Weatherford MP-16 Triplex Mud Pump Liner Steel Integral Forging Mud Pump Liner combine the strength of a forged steel outer shell with the abrasion and corrosion resistance of a high chrome inner sleeve. These liners feature a centrifugally cast high chrome iron sleeve which is machined and heat treated to a minimum uniform bore hardness of 59-65HRC.

Weatherford MP-16 Triplex Mud Pump Liner Steel Integral Forging Mud Pump Liner is the main expendable parts of the mud pump, it adapts double metal fix together.Bi-metal cylinder liner is one of the most widely and largest used mud pump fluid end fittings.

Mud pump liners are including Bi-metal Liners and Ceramic Liners. Sizes of 6 1/2”, 7”, 140mm, 150mm,160mm, 170mm, 200mm, 230mm liners.

The material of most Bi-metal cylinder liner is ZG45 steel, lined with high chromium cast iron. The HRC of cylinder inside liner is 60-65;

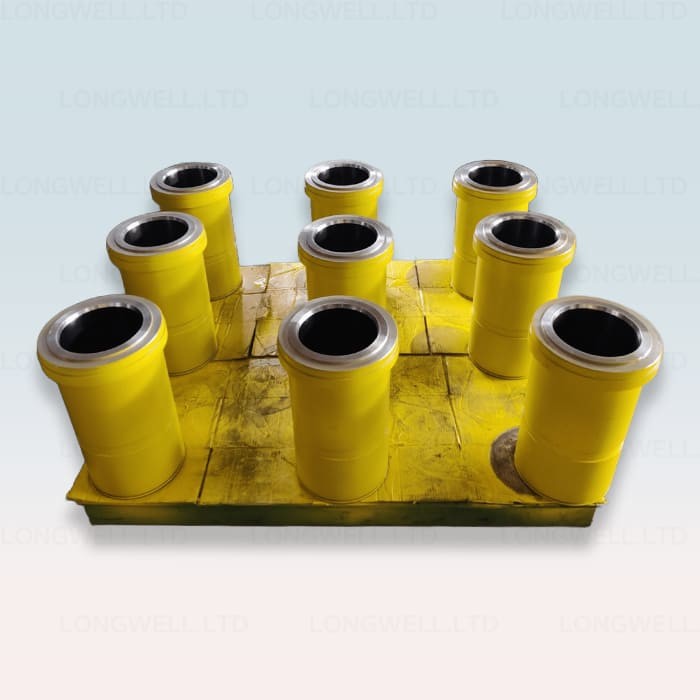

Centrifugally Cast Bi Metal Liners High Chrome Iron Sleeve For Weatherford MP-16 Triplex

What is the production process for Weatherford MP-16 Triplex Mud Pump Liner?

The Weatherford MP-16 Triplex Mud Pump Liner of our company combined with the advantages of abrasion hot-forging out liner and anticorrosion high chrome inner liner. The out liner is made of high quality carbon steel by hot pressing forming. Its tensile strength is over 900000psi. The inner liner is made of high-chromium alloy by centrifugal casting.

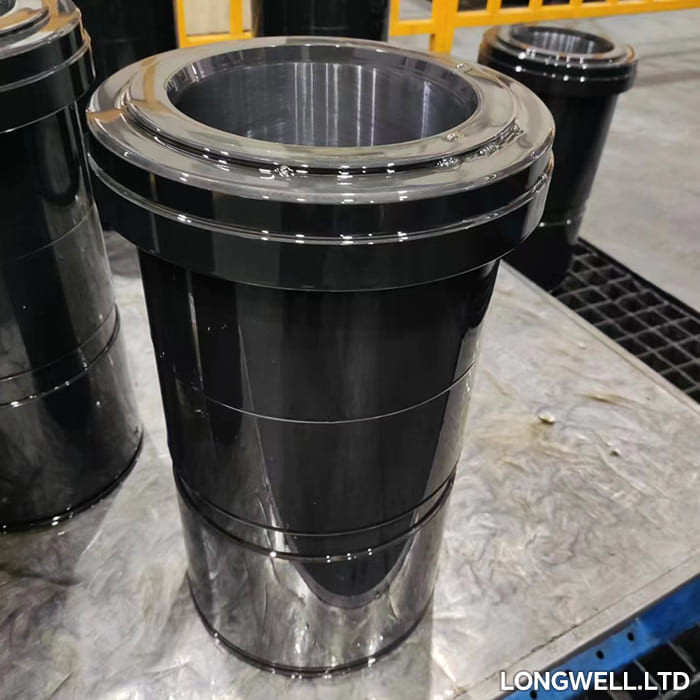

Centrifugally Cast Bi Metal Liners High Chrome Iron Sleeve For Weatherford MP-16 Triplex

Whta are the general features for Weatherford MP-16 Triplex Mud Pump Liner?

The outer sleeve is forged steel with quality carbon steel,the inner sleeve is casted with high carbon and high chromimum use the technology of centrigual casting, after treatment ,the hardness of it can reach to a level of 59-67HRC.

Liner Outer Sleeve: 45# forged steel,tensile strength is δb ≥610Mpa ,yield strength is δs≥450Mpa,elongation hardness is E≥17%,hardness is HRC180-200.

Liner Inner Sleeve :high chromium cast iron(centrifugal forged). Annealing hardness is HRC≤ 40.Quenching hardness is HRC59-67.

Chemical Composition C 2.8%-3.1% Cr 26%-28% Si 0.6%-0.9% Mn 0.5%-1% Mo 0.5%-0.8% S.P≤0.05%

Centrifugally Cast Bi Metal Liners High Chrome Iron Sleeve For Weatherford MP-16 Triplex

What is Ceramic Liner?

Ceramic Liners combine the strength of a forged steel outer shell with the abrasion and corrosion resistance of a ceramic inner sleeve.

Ceramic cylinder inner sleeve is used zirconia toughening alumina ceramics obtained the national patent, using zirconium oxide the characteristics of high fracture toughness and high hardness of alumina, the combination of these two can improve the fatigue strength of the product. Its coat uses 45 steel forging with good mechanical properties.

After tempering heat treatment, hardness of HB235-265, the tensile strength is not less than 655 mpa.

Centrifugally Cast Bi Metal Liners High Chrome Iron Sleeve For Weatherford MP-16 Triplex
