High Hardness HRC60 7V1 Mud Pump Valve Seat Forged Steel For Drilling Rigs

Name: High Hardness HRC60 7V1 Mud Pump Valve Seat Forged Steel For Drilling Rigs
Brand: LONGWELL
Price: 1 USD

China High Hardness HRC60 7V1 Mud Pump Valve Seat Forged Steel For Drilling Rigs wholesale

Brand Name : LONGWELL

Model Number : Oil Drilling Mud Pump

Certification : API-7K

Place of Origin : China

MOQ : 1 PCS

Packaging Details : Plywood case/Iron pallet

Payment Terms : T/T 30%DP, balabce before ship

Supply Ability : 1000 PCS per Month

Valve Body Material : Forged Steel

Valve Actuation : Manual

Color : blue

Structure : Piston Pump

Standard Or Nonstandard : Standard

Application : Oil and Gas Drilling

Mateial : 20CrMnTi

Weight : 5.2KG

Pressure : 5000-7500PSI

Condition : new

Temperature Range : 0-250°F

Connection : Threaded

Usage : drill rig

Valve Handle : Aluminum Alloy

BOMCO : F800/1000/1300/1600/1600HL

HONGHUA : 3NB-800/1000/1300/1600F

HRSB : RS-F800/1000/1300/1600

INGZHOU : QF-1300/1600

LS-NOW : 3NB1300C/1600

NOV : 12-P-160 14-P-220

WeatherFord : MP-10/16

GD : PZ-7/8/9/10/11

EMSCO : FB-1300/1600

RUSSIAN : UNBT-950/1180L UNB-600 8T650

Contact Now

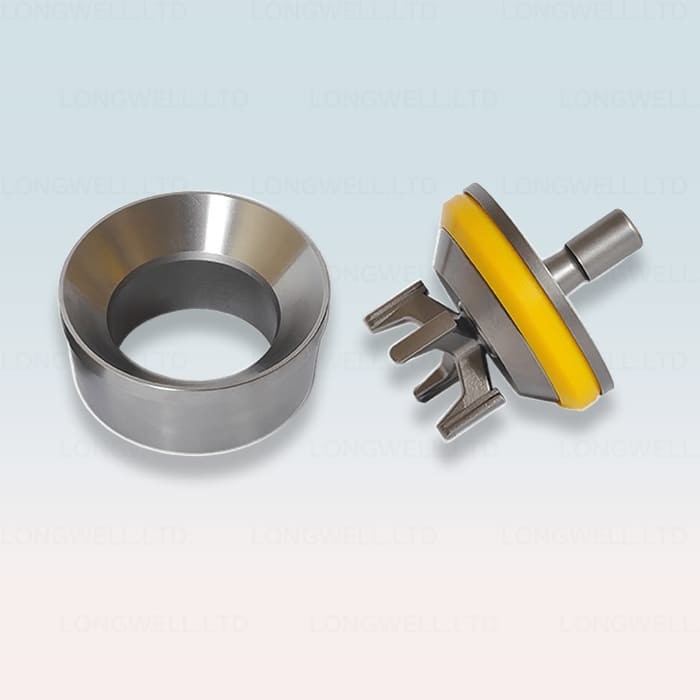

What is the type of Mud Pump Valve Assembly?

According to the inner hole form of the valve seat, the valve assembly can be divided into a through hole valve, a three-web valve and a four-web valve.

High Hardness HRC60 7V1 Mud Pump Valve Seat Forged Steel For Drilling Rigs

What is the surface hardness of 7V1 Style Valve Assembly?

The valve assembly the surface hardness is greater than HRC60, and the conical surface is ground to ensure high roughness requirements and geometric dimensions. is the key component of the hydraulic end of the mud pump.

High Hardness HRC60 7V1 Mud Pump Valve Seat Forged Steel For Drilling Rigs

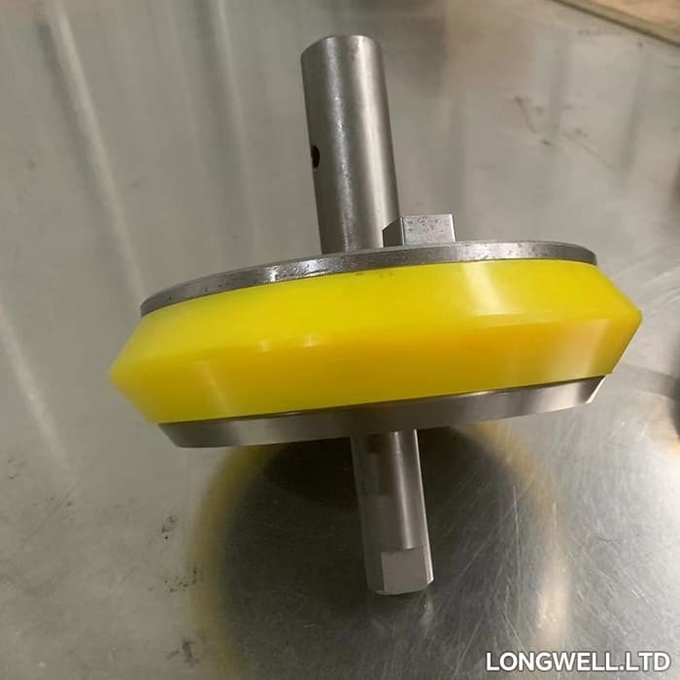

What is the 7V1 Style Valve Assembly consists?

The 7V1 Style Valve Assembly consists of valve body, valve rubber, valve nut, guide frame, gland, clamp spring, steel ball, etc. (i.e. valve assembly with valve seat removed).

The 7V1 Style Valve Assembly valve body and the valve seat of the valve assembly are carburized and quenched with high-quality bonded steel 20 Customer-relationship Management NTI.

The part numbers of Mud Pump 7# Full Open Valve Assembly are AH0000020100 AH33001-05.17A.00 AH0000020300 GH3161-0511-00 AH36001-05.12A.00

High Hardness HRC60 7V1 Mud Pump Valve Seat Forged Steel For Drilling Rigs

More part numbers for other valves:

AH36001-05.12A.00
AH36001-05.12.00
AH0000020400
AH35001-05.14.00
AH0000020600
AH0000020500
RGF1000-05.17.00
RS11309.05.10.00
