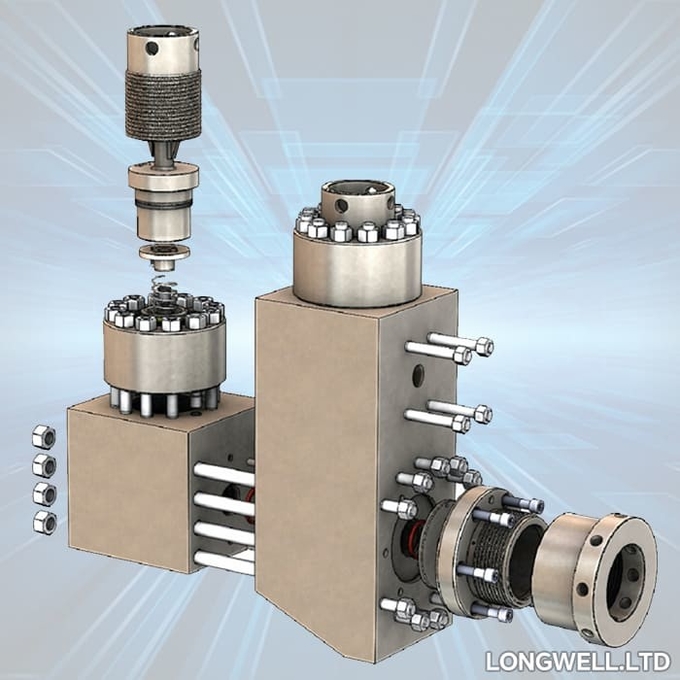

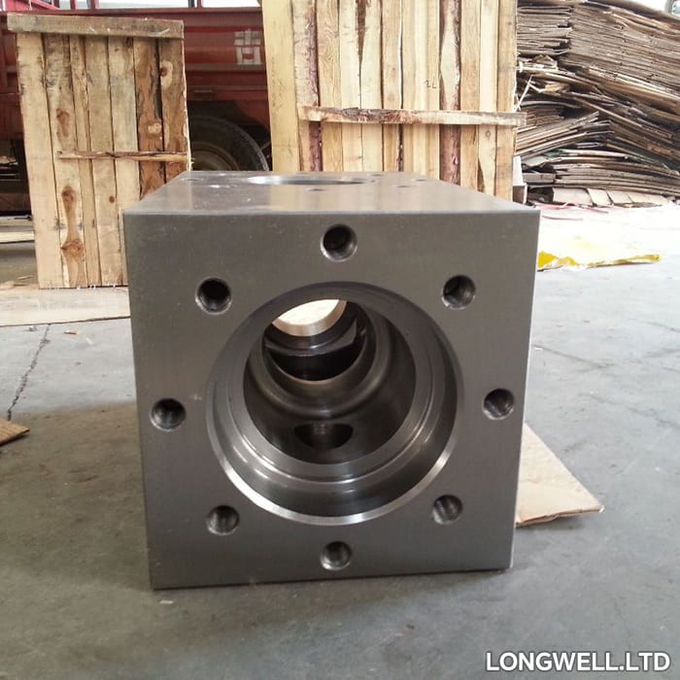

What is NOV 12-P-160 Fliud End Suction Mud Pump Module?
For maximum performance and durability, our NOV 12-P-160 Fliud End Suction Mud Pump Modules are made from individually forged, heat-treated alloy steel and feature an API 7 valve assembly for improved flow.
Our L-shaped design features bore-seal technology for improved seal performance in higher pressures and is compatible with numerous “F-Series” drilling pumps including Honghua®, Bomco® Rongsheng®, Workforce® and other similar designs.
What are the types of NOV 12-P-160 Fliud End Suction Mud Pump Module?
NOV 12-P-160 Fliud End Suction Mud Pump Module For Drilling Rigs standard one-and/or-two-piece configuration, with designs available for pressure of 5000psi(35.1Mpa), 7500psi(52.7Mpa), and 10000psi(70.3Mpa); discharge connections available on each side; suction connections on each side or front center.
How to produce the NOV 12-P-160 Fliud End Suction Mud Pump Module?
● Rigid inspection
● Made on CNC boring mills
● Strict computer controlled heat treat procedures
● 100% interchangeable with OEM
● Premium forged alloy steel
LONGWELL offers a complete line of accessories for OEM fluid end modules, CNC machining makes these accessories uniformly dimensional and interchangeable with OEM.
The perfect exterior surface reflects the superior inside quality.
Fluid end accessories include,
● Valve and cylinder head plug
● Valve and cylinder head thread ring
● Upper and lower valve guide
● Stud and nut
● Gasket, Cylinder Head Gasket, etc.
