11-3161-0200 Crankshaft Assembly GH3131-02.00 Forged Steel Mud Pump Accessories

Name: 1131610200 Crankshaft Assembly GH31310200 Forged Steel Mud Pump Accessories
Brand: LONGWELL
Price: 1 USD

China 11-3161-0200 Crankshaft Assembly GH3131-02.00 Forged Steel Mud Pump Accessories wholesale

Brand Name : LONGWELL

Model Number : Oil Drilling Mud Pump

Certification : API-7K

Place of Origin : China

MOQ : 1 PCS

Packaging Details : Plywood case/Iron pallet

Payment Terms : T/T 30%DP, balabce before ship

Supply Ability : 1000 PCS per Month

Material : Forged Steel

Weight : 5500kg

Standard Or Nonstandard : Standard

Model : F1600

Usage : drill rig

Application : Oil and Gas Drilling

Oem : Applicable

Bearing Type : Roller Bearing

BOMCO : F800/1000/1300/1600/1600HL

HONGHUA : 3NB-800/1000/1300/1600F

HRSB : RS-F800/1000/1300/1600

INGZHOU : QF-1300/1600

LS-NOW : 3NB1300C/1600

NOV : 12-P-160 14-P-220

WeatherFord : MP-10/16

GD : PZ-7/8/9/10/11

EMSCO : FB-1300/1600

RUSSIAN : UNBT-950/1180L UNB-600 8T650

Contact Now

What is the structure of HONGHUA HHF1300/1600 Crankshaft Assembly?

The crankshaft assembly consists of crankshaft, big gear rim, connecting rod, crankshaft bearing and connecting rod bearing (eccentric) etc. It is installed on frame through self-aligning roller bearing.

11-3161-0200 Crankshaft Assembly GH3131-02.00 Forged Steel Mud Pump Accessories

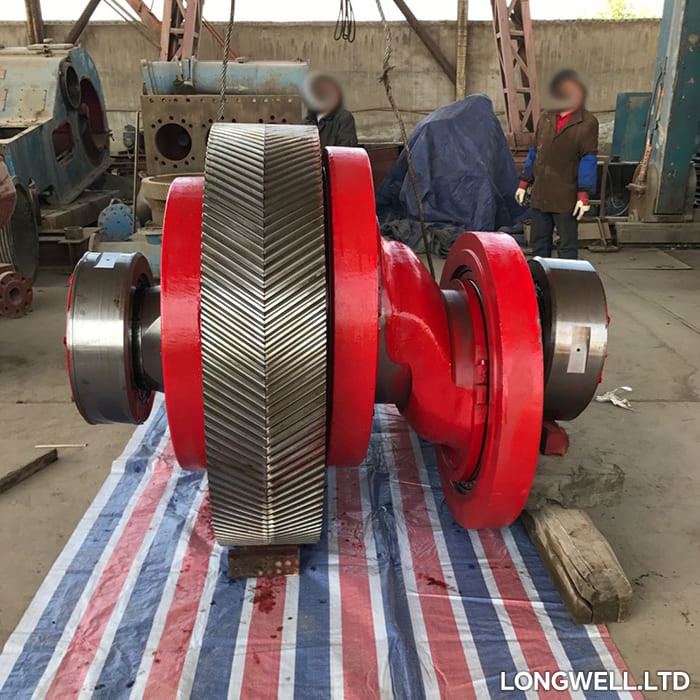

The crankshaft is an integral cast eccentric shaft. The 3 cranks locate at 360 degrees equally.

The left and right spiral gear rings are integrated to become a herringbone gear rim without cutting groove, which is installed on crankshaft with bolts.

11-3161-0200 Crankshaft Assembly GH3131-02.00 Forged Steel Mud Pump Accessories

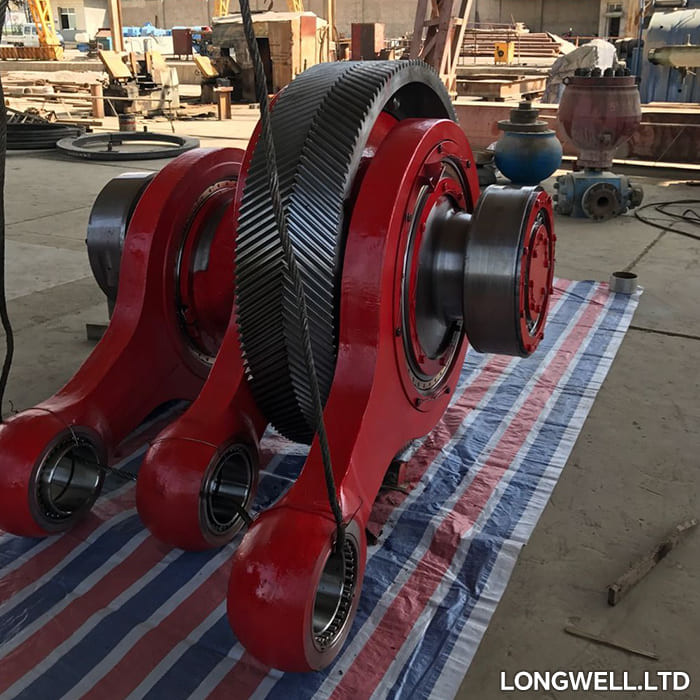

The 3 big end bearings of connecting rod are single row short cylindrical roller bearings installed respectively at three eccentric cranks.

The connecting rod small end is connected to the crosshead pin through double row long cylindrical roller bearing.

11-3161-0200 Crankshaft Assembly GH3131-02.00 Forged Steel Mud Pump Accessories
