Corrosion Resistance Suction Dampener

  • 1
  • 2

Brand Name : LONGWELL

Model Number : Oil Drilling Mud Pump

Certification : API-7K

Place of Origin : China

MOQ : 1 PCS

Packaging Details : Plywood case/Iron pallet

Payment Terms : T/T 30%DP, balabce before ship

Supply Ability : 1000 PCS per Month

Usage : Oil

Application : Drilling Mud Pump

Features : High Pressure Resistance, Corrosion Resistance, Long Service Life

Pressure : Low Pressure

Oem : Applicable

Condition : new

Maximum Pressure : 5000 psi

Standard Or Nonstandard : Standard

Working Temperature : Up to 180°F

Type : Piston Type

Material : Rubber

Structure : Piston Pump

BOMCO : F800/1000/1300/1600/1600HL

HONGHUA : 3NB-800/1000/1300/1600F

HRSB : RS-F800/1000/1300/1600

INGZHOU : QF-1300/1600

LS-NOW : 3NB1300C/1600

NOV : 12-P-160 14-P-220

WeatherFord : MP-10/16

GD : PZ-7/8/9/10/11

EMSCO : FB-1300/1600

RUSSIAN : UNBT-950/1180L UNB-600 8T650

Contact Now

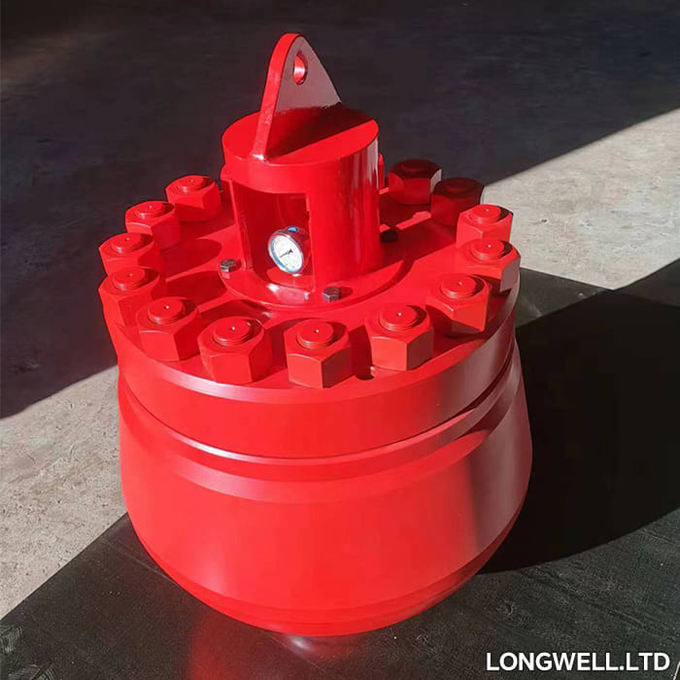

Suction dampener is a very effective aid for improving suction performance and eliminating fluid pulsations in the suction line, which results in a smoother flow in the discharge line.


The mounting for KB-75 pulsation dampener (1) is a flange with R-39 seal washer. Before installing dampener, thoroughly clean ring groove and ring, and after setting dampener into place, tighten the nut (8) with 950-1265N.m (700-935ft.lbs) torque. Tighten nuts in a criss-cross order.

Corrosion Resistance Suction Dampener


The discharge pulsation dampener is only allowed to charge nitrogen or air. No inflammable and explosive gases are allowed such as oxygen, hydrogen etc.


When stopping the pump check if the pre-charging pressure of discharge pulsation dampener meets the operational requirements.

Corrosion Resistance Suction Dampener
