Haihua F1600 Mud Pump Cylinder Head Plug HH11309.05.06.00.144 For Drilling Rigs

Name: Haihua F1600 Mud Pump Cylinder Head Plug HH11309050600144 For Drilling Rigs
Brand: LONGWELL
Price: 1 USD

China Haihua F1600 Mud Pump Cylinder Head Plug HH11309.05.06.00.144 For Drilling Rigs wholesale

Brand Name : LONGWELL

Model Number : Oil Drilling Mud Pump

Certification : API-7K

Place of Origin : China

MOQ : 1 PCS

Packaging Details : Plywood case/Iron pallet

Payment Terms : T/T 30%DP, balabce before ship

Supply Ability : 1000 PCS per Month

Usage : drill rig

Maximum Pressure : 7500 psi

Standard Or Nonstandard : Standard

Condition : new

Type : Triplex Piston Pump

Oem : Applicable

Model : Haihua F1600

Certifications : API, ISO

Power Rating : 1000 HP

BOMCO : F800/1000/1300/1600/1600HL

HONGHUA : 3NB-800/1000/1300/1600F

HRSB : RS-F800/1000/1300/1600

INGZHOU : QF-1300/1600

LS-NOW : 3NB1300C/1600

NOV : 12-P-160 14-P-220

WeatherFord : MP-10/16

GD : PZ-7/8/9/10/11

EMSCO : FB-1300/1600

RUSSIAN : UNBT-950/1180L UNB-600 8T650

Contact Now

What is Haihua F1600 mud pump Cylinder Head Plug?

The plug is an important part for the fluid end of mud pump in oil drilling. Its front part is equipped with cylinder head (valve cover) sealing ring for the sealing and pressure maintaining of a hydraulic cylinder. A top-grade suitable plug is adopted to improve the cylinder head plug loading condition and also increase the bearing capacity and service life.

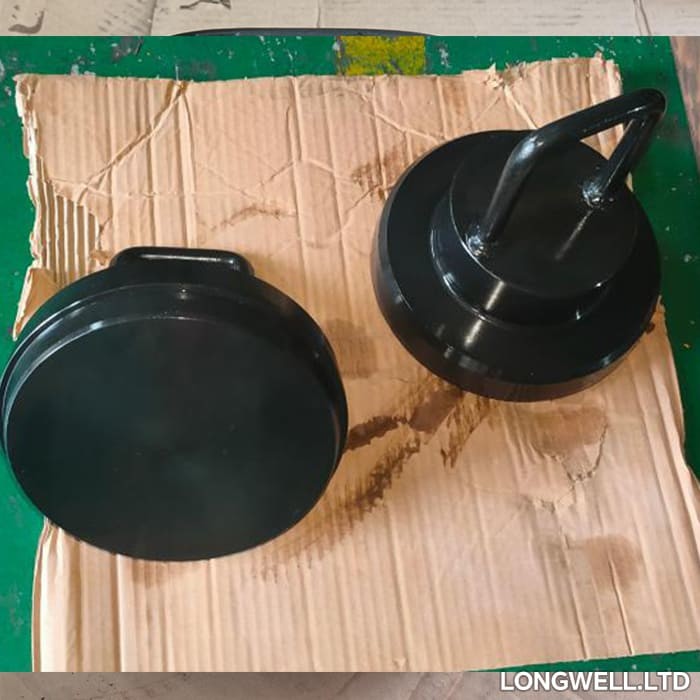

Haihua F1600 Mud Pump Cylinder Head Plug HH11309.05.06.00.144 For Drilling Rigs

What is the material of Haihua F1600 mud pump Cylinder Head Plug?

Cylinder head plug is installed in the hydraulic cylinder.Cylinder head plug consists of a handle and a plug body , which are welded together. The blank of plug body is 45 steel, which is quenched as per the standard of HB217-255.

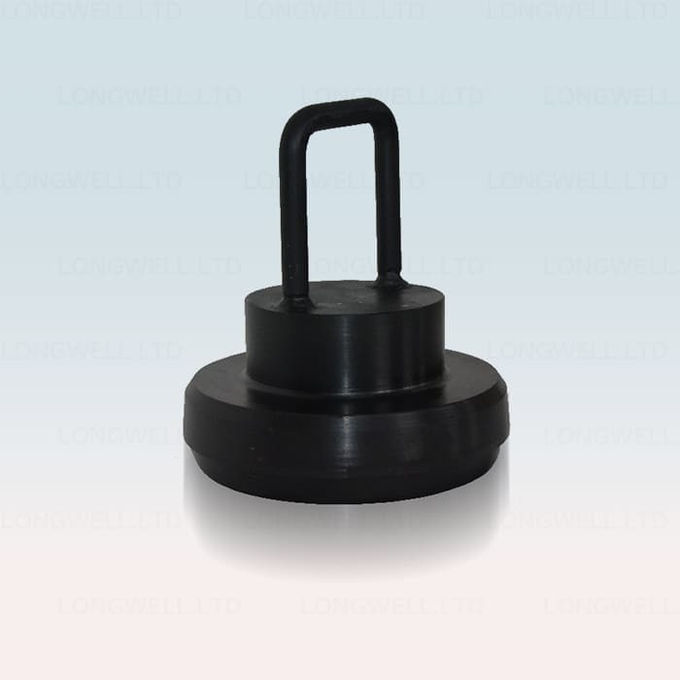

Haihua F1600 Mud Pump Cylinder Head Plug HH11309.05.06.00.144 For Drilling Rigs

Plugs made by LONGWELL Company cover a full range of pumps from BAOSHI, LANSHI and QINGSHI factories. All of them adopt high quality alloy carbon steel made by domestic steel plants. They are finished by means of high temperature forging, heat treatment and CNC machining so as to achieve guaranteed geometric size, sealing performance, increased durability and wear resistance.

Haihua F1600 Mud Pump Cylinder Head Plug HH11309.05.06.00.144 For Drilling Rigs
