F2200HL Triplex Pump Valve Assembly API 8# High Pressure AH220101010500

Name: F2200HL Triplex Pump Valve Assembly API 8 High Pressure AH220101010500
Brand: LONGWELL
Price: 1 USD

China F2200HL Triplex Pump Valve Assembly API 8# High Pressure AH220101010500 wholesale

Brand Name : LONGWELL

Model Number : Oil Drilling Mud Pump

Certification : API-7K

Place of Origin : China

MOQ : 1 PCS

Packaging Details : Plywood case/Iron pallet

Payment Terms : T/T 30%DP, balabce before ship

Supply Ability : 1000 PCS per Month

Structure : FULL OPEN

Material : Forged steel

Weight : 12KG

Seat Type : Replaceable

Pressure : High Pressure

Operation : Manual

Temperature Range : -20-200℃

Standard Or Nonstandard : Standard

Usage : drill rig

Oem : Applicable

BOMCO : F800/1000/1300/1600/1600HL

HONGHUA : 3NB-800/1000/1300/1600F

HRSB : RS-F800/1000/1300/1600

INGZHOU : QF-1300/1600

LS-NOW : 3NB1300C/1600

NOV : 12-P-160 14-P-220

WeatherFord : MP-10/16

GD : PZ-7/8/9/10/11

EMSCO : FB-1300/1600

RUSSIAN : UNBT-950/1180L UNB-600 8T650

Contact Now

What is the type of Mud Pump Valve Assembly?

According to the inner hole form of the valve seat, the valve assembly can be divided into a through hole valve, a three-web valve and a four-web valve.

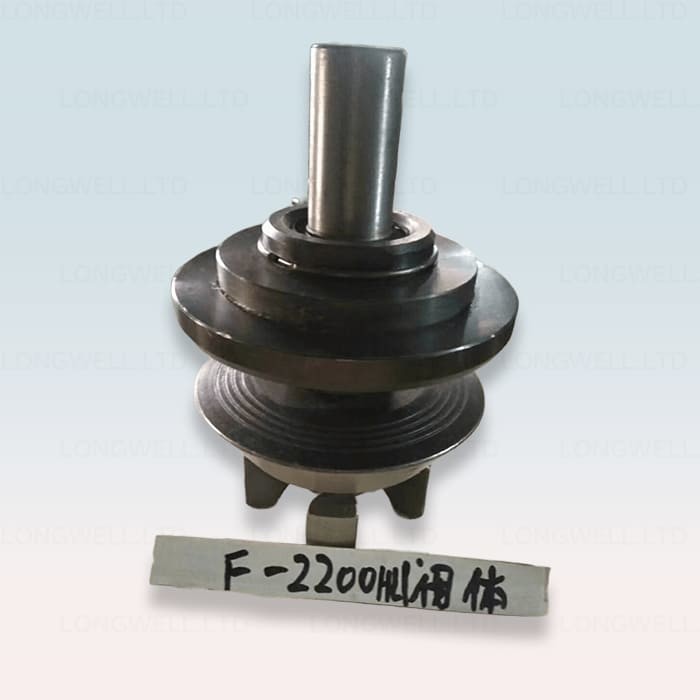

F2200HL Triplex Pump Valve Assembly API 8# High Pressure AH220101010500

What is the F2200HL Triplex Mud Pump API 8# High Pressure Valve Assembly consists?

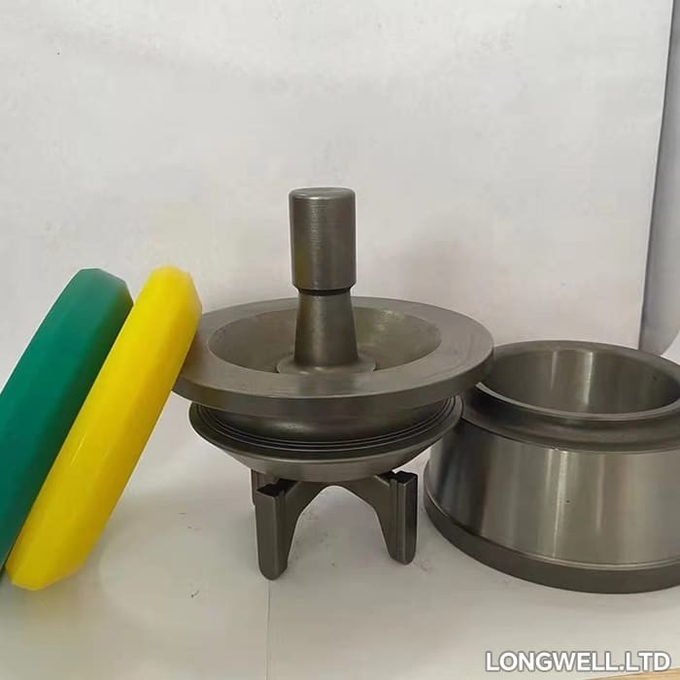

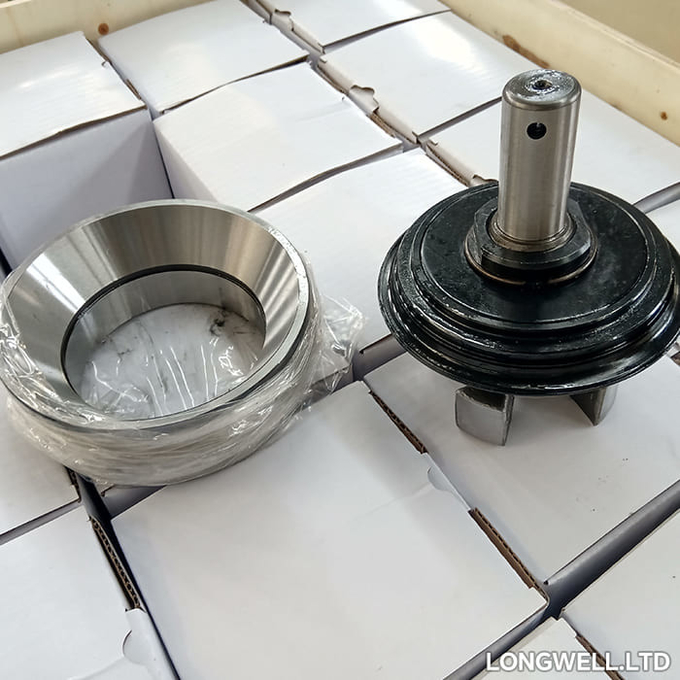

The F2200HL Triplex Mud Pump API 8# High Pressure Valve Assembly consists of valve body, valve rubber, valve nut, guide frame, gland, clamp spring, steel ball, etc. (i.e. valve assembly with valve seat removed).

The F2200HL Triplex Mud Pump API 8# High Pressure Valve Assembly valve body and the valve seat of the valve assembly are carburized and quenched with high-quality bonded steel 20 Customer-relationship Management NTI.

F2200HL Triplex Pump Valve Assembly API 8# High Pressure AH220101010500

What is the surface hardness of F2200HL Triplex Mud Pump API 8# High Pressure Valve Assembly?

The valve assembly the surface hardness is greater than HRC60, and the conical surface is ground to ensure high roughness requirements and geometric dimensions. is the key component of the hydraulic end of the mud pump.

The part numbers of Mud Pump 7# Full Open Valve Assembly are AH0000020100 AH33001-05.17A.00 AH0000020300 GH3161-0511-00 AH36001-05.12A.00

F2200HL Triplex Pump Valve Assembly API 8# High Pressure AH220101010500

More part numbers for other valves:

AH36001-05.12A.00
AH36001-05.12.00
AH0000020400
AH35001-05.14.00
AH0000020600
AH0000020500
RGF1000-05.17.00
RS11309.05.10.00
